Carbine Rack And Pinion ETCHED Door Closer

The Carbine Radius Rack & Pinion series includes models with adjustable closing, latching speeds, and back check. They are single-action closers with an included (but optional) transom mount on the push side and non-handed installation making them easy to install on inward or outward opening doors.

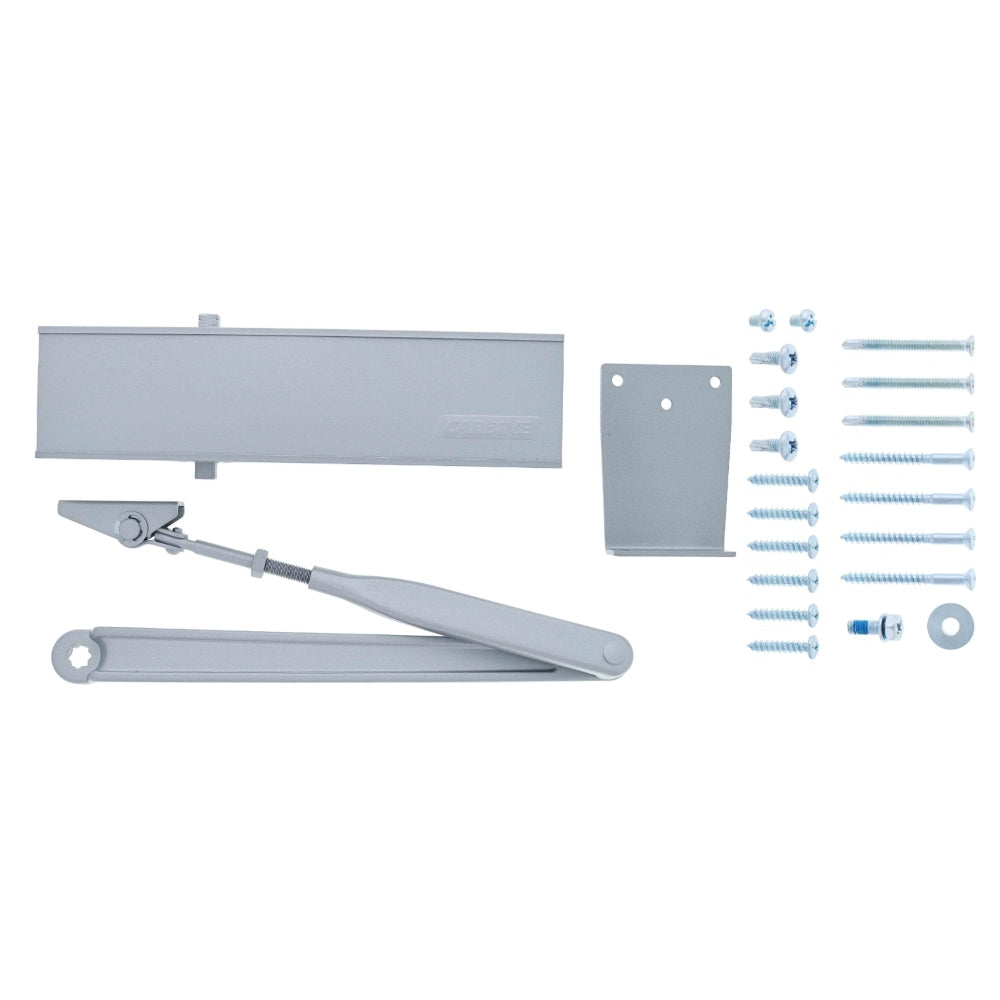

These stylish door closers are supplied with everything you need for installation including standard and parallel arm fittings, timber and self-drilling metal screws.

- Fire rated for 2 hours
- Cycle tested to 500,000 cycles
- Standard arm 180 degree opening

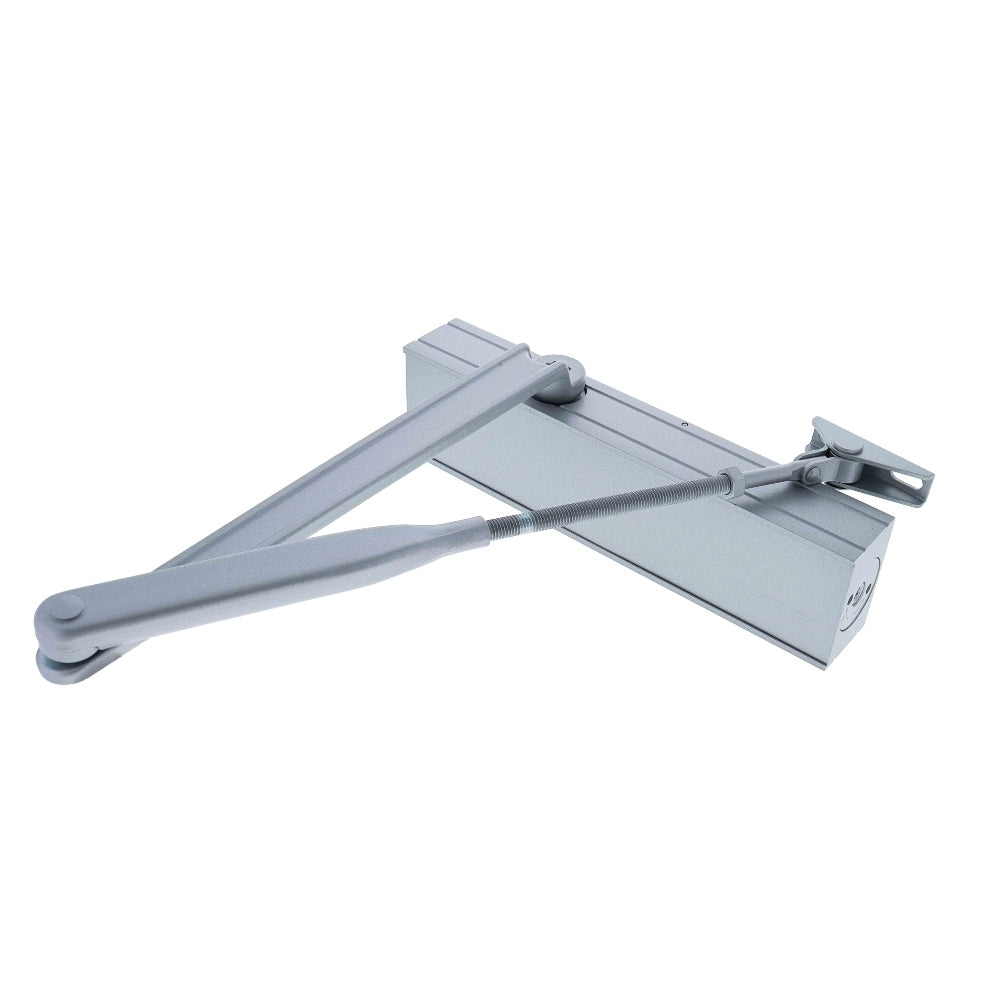

- Parallel arm 130 degree opening

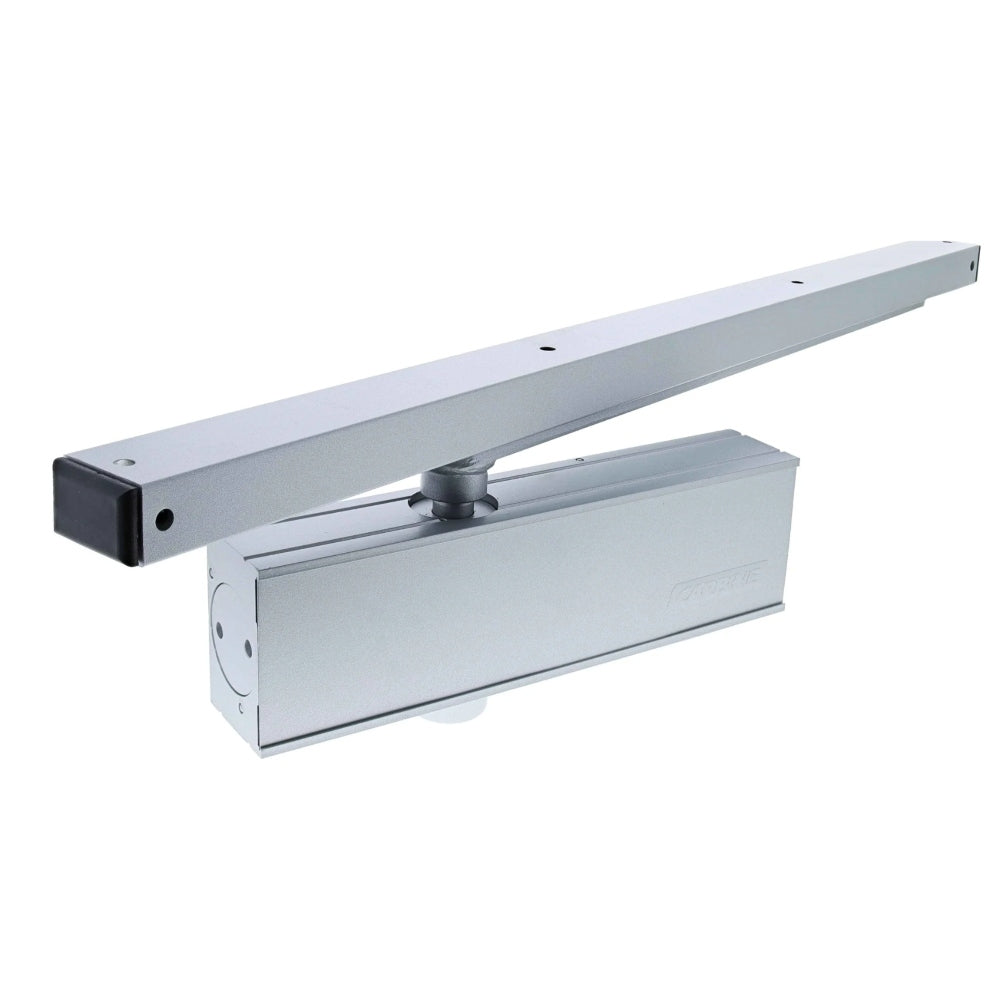

- Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)

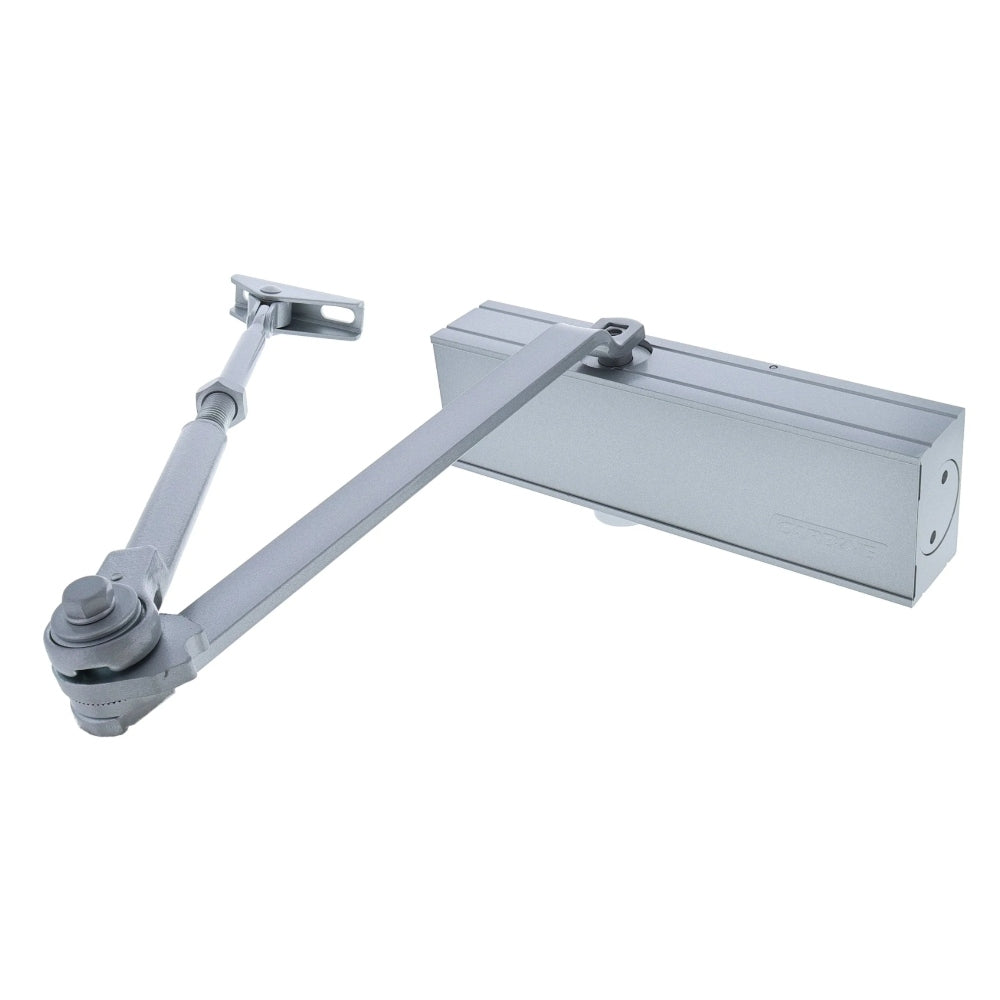

- Hold open 130 degree opening (180 degree, hold open angle 70-150 degree CDC-5)

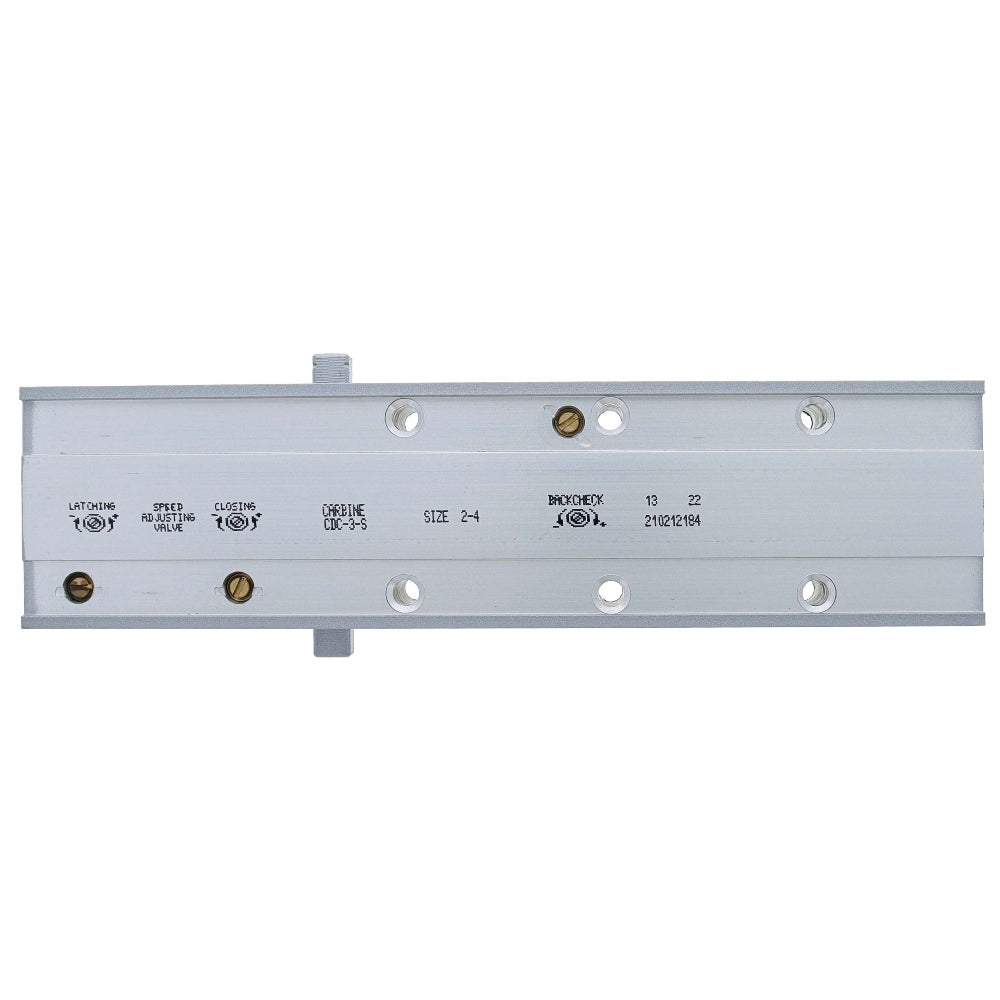

- Adjustable closing & latching speed
- Adjustable back check 70 to 90 degrees
- Surface mount

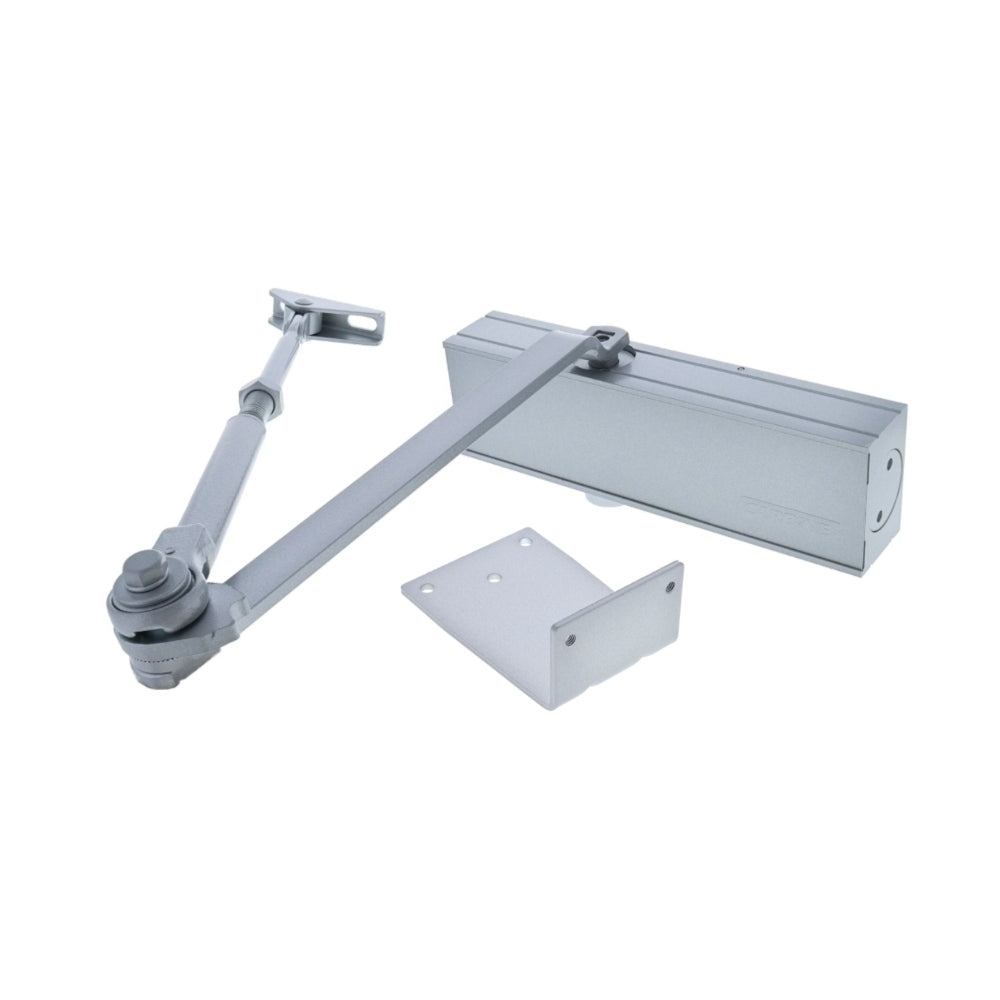

- Transom mount on push side (optional)
- Rack & pinion
- Positional mounting for closer strength
- Supplied with standard and parallel arm fittings
- Single-action door
- Non-handed installation
- Supplied with timber and self-drilling metal screws
- Constructed with extruded anodized aluminium body

CDC-1

- Adjustable power size 2-4
- Parallel bracket mount on size 3-4
- Max door width 1100mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Body size 207mm x 60mm x 39mm
- Available in silver and matte black finish

CDC-3

- Adjustable power size 2-4
- Parallel bracket mount on size 3-4
- Max door width 1100mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Body size 236mm x 60mm x 39mm
- Available in silver and matte black finish

CDC-5

- Adjustable power size 2-6
- Parallel bracket mount on size 3-5
- Max door width 1400mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Size 5 width of 1250mm and weight of 100kg
- Size 6 width of 1400mm and weight of 120kg
- Adjustable delayed action
- Body size 256.5mm x 60mm x 48mm
- Available in silver and matte black finish
